Defense and Special Applications — Advanced Aerogel Thermal Protection

Mission-Critical Thermal Challenges

Where Advanced Thermal
Materials Define Outcomes

In defense, aerospace, and special applications, systems routinely face thermal conditions that exceed the limits of conventional insulation materials. The consequences of thermal failure in these environments are not commercial inconvenience — they are mission failure.

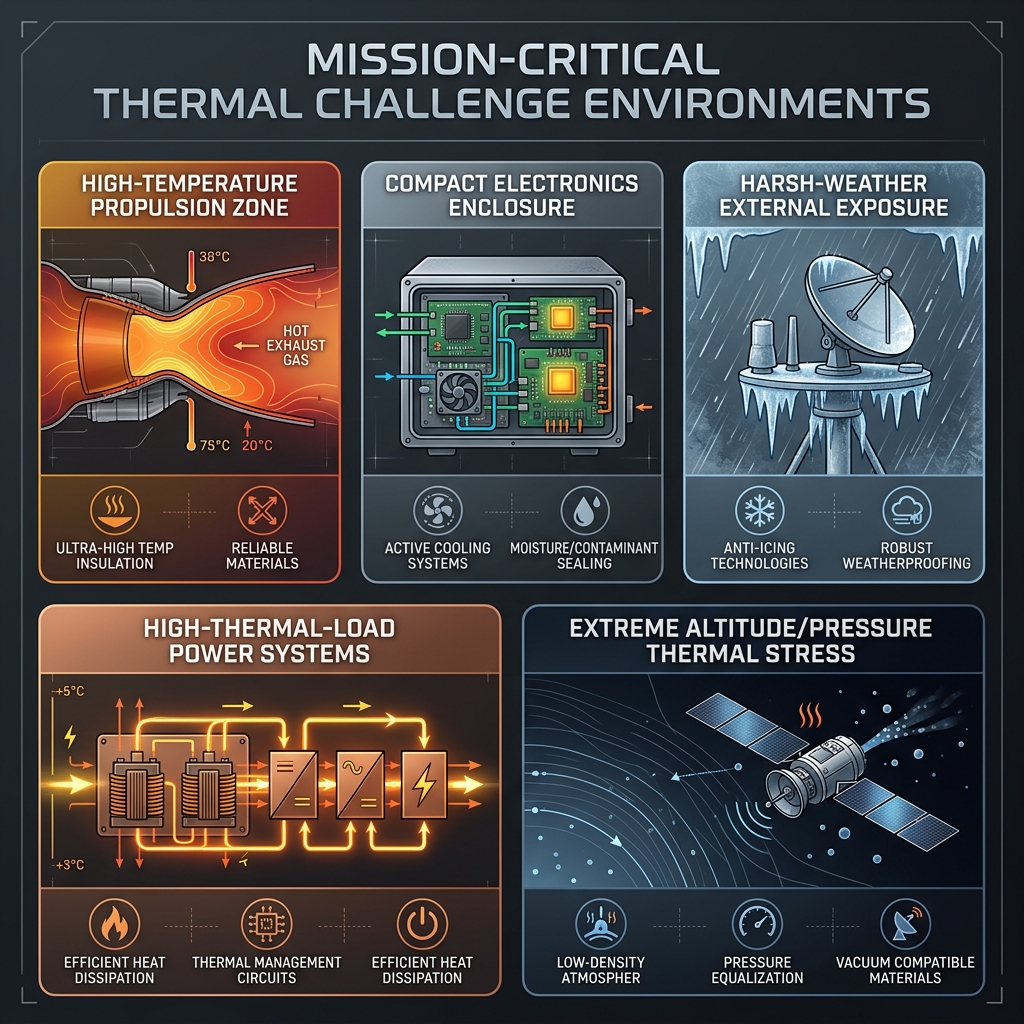

Five mission-critical thermal challenge environments: propulsion zones, electronics enclosures, harsh-weather exposure, power systems, extreme altitude/pressure

01

High-Temperature Zones

Propulsion systems, exhaust pathways, and power generation assemblies generate extreme localized heat. Adjacent components require passive thermal shielding that functions without active cooling — reliably and indefinitely.

650°C–1300°C operating protection range

02

Compact Enclosure Constraints

Mission systems demand miniaturization. Thermal protection that consumes excessive volume or weight is a design penalty that directly reduces system capability and operational flexibility.

~2 cm compact barrier vs 6 cm conventional

03

Harsh Environmental Exposure

Moisture, salt spray, extreme temperature cycling, chemical exposure, and long-duration deployment. Materials that degrade under environmental stress compromise protection exactly when it matters most.

165° superhydrophobic — total moisture rejection

The Engineering Imperative

Why Lightweight, Compact
Thermal Protection Matters

In mission-critical system design, every gram of mass and every millimeter of thickness must justify its existence. Conventional fire protection and thermal insulation materials often impose unacceptable design penalties.

⚖️

Weight Is Mission Currency

In aerospace and mobility applications, mass directly translates to range, payload, efficiency, and mission endurance. A thermal barrier with >90% air content represents one of the lightest protection solutions available.

📐

Volume Is Design Freedom

Thick insulation consumes space needed for sensors, electronics, structural components, and operational systems. A 2cm barrier providing equivalent protection to 6cm of conventional material creates significant design flexibility.

🔥

Temperature Endurance Is Non-Negotiable

Materials that degrade, melt, or lose structural integrity at operating temperatures are not protection — they are liability. Operating range from -200°C to +650°C (standard) and up to +1300°C (ceramic variant) covers the full mission envelope.

🛡️

Environmental Resilience Is Assumed

Materials that absorb moisture, degrade under UV, or lose performance with age are unacceptable for long-duration applications. 165° superhydrophobicity and zero-maintenance longevity eliminate this risk category entirely.

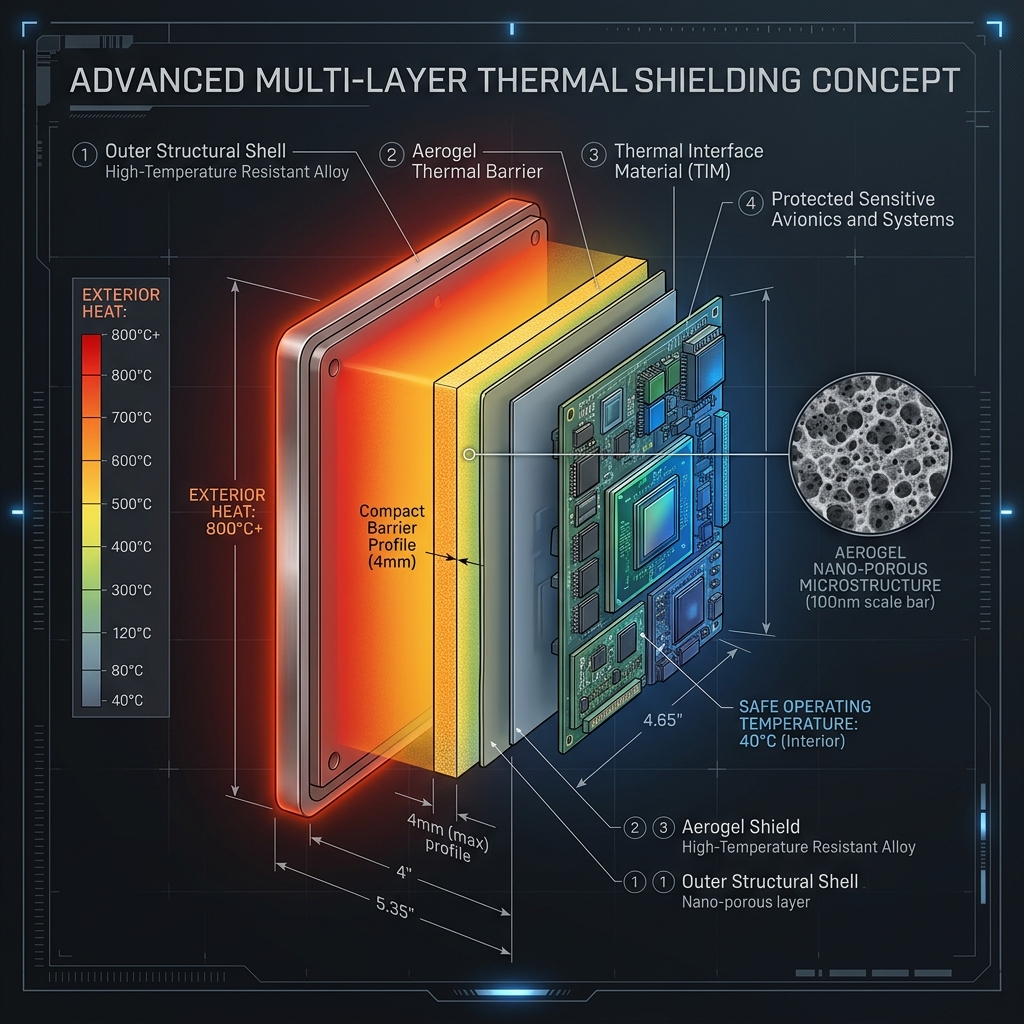

Advanced multi-layer thermal shielding concept: outer shell, aerogel barrier (4mm), thermal interface, protected avionics — 800°C exterior to 40°C interior

The Levron Aerogel Material Platform

An Advanced Thermal Protection
Platform for Specialized Systems

Not a repositioned commercial insulation product. A precision-engineered aerogel material platform with inherent multifunctional properties — thermal shielding, fire resistance, hydrophobicity, and environmental resilience — built into the molecular architecture.

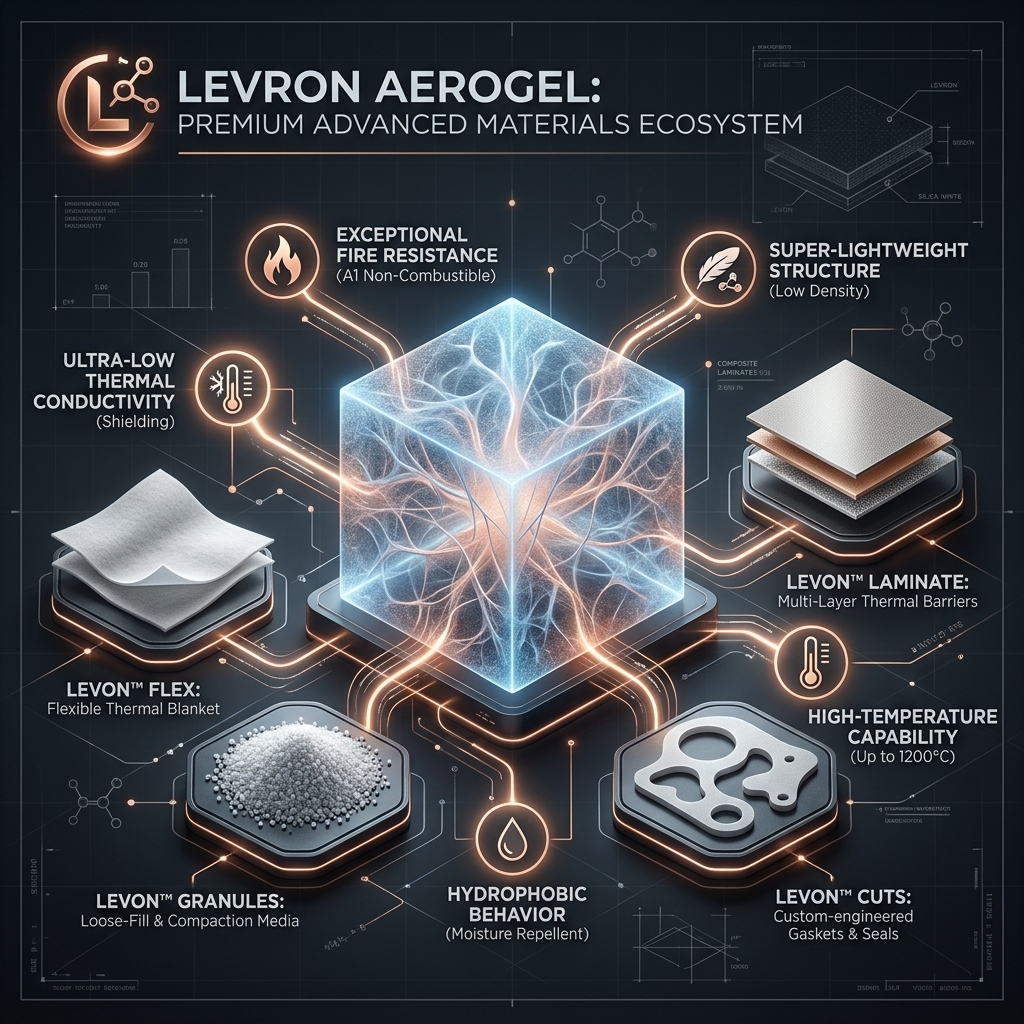

Levron Aerogel premium advanced materials ecosystem: flexible blankets, granules, composite laminates, custom-engineered gaskets with connected property nodes

Ultra-Low Thermal Conductivity

Platform-level conductivity as low as 0.012 W/m·K — among the lowest of any commercially available solid material. Reduces heat transmission to near-minimum physically achievable rates.

0.012 W/m·K

Extreme Temperature Range

Standard configuration: -200°C to +650°C continuous operation. Ceramic wool variant: rated to 1300°C. Covers the full thermal spectrum encountered in advanced system environments.

-200°C to +1300°C

Compact Passive Protection

Delivers equivalent thermal resistance to 6cm of stone wool in approximately 2cm. A design advantage that scales across every component and subsystem requiring thermal shielding.

~3× thinner

Environmental Resilience

165° superhydrophobic contact angle — complete moisture rejection active up to 650°C. Zero degradation from humidity, salt spray, or chemical exposure. Maintenance-free for the full system lifecycle.

165° hydrophobic

Non-Combustible Classification

A1 fire class — the material does not contribute to fire load, cannot sustain flame, and maintains structural integrity under extreme thermal exposure. The shielding itself never becomes a vulnerability.

A1 fire class

Mission-Specific Customization

Available as flexible felt, precision granules, composite laminates, and die-cut forms. Engineered for co-development with specialized system integrators to match exact geometries and performance requirements.

Custom configurations

Technical Performance

Engineering-Grade Specifications
for Material Evaluation

Every parameter represents measured performance from Levron Aerogel testing — providing the technical foundation for advanced thermal protection material evaluation.

Thermal Conductivity

0.012–0.016

W/m·K (platform level)

Among the lowest thermal conductivities of any commercially available solid material. Applied felt: ~0.022–0.024 W/m·K. Enables the thinnest possible thermal protection layers for constrained system designs.

Near-minimum physically achievable thermal transfer

Operating Temperature

-200°C to +650°C

standard configuration

Glass wool-reinforced standard felt. Ceramic wool variant extends to 1300°C for extreme thermal environments and propulsion-adjacent applications.

Fire Classification

A1 Class

non-combustible

A1 classification confirms zero fire load contribution. The thermal shield itself never becomes additional fuel or vulnerability during a thermal event.

Material Porosity

90–95%

air by volume

One of the lightest solid structures known — overwhelmingly composed of trapped air. Minimizes mass penalty in weight-sensitive applications.

Hydrophobicity

165°

water contact angle

Superhydrophobic behavior maintained under mechanical stress. Active up to 650°C operating temperature. Complete resistance to moisture ingress.

Compressive Strength

~40 kPa

mechanical resistance

Sufficient structural integrity for compression environments within enclosures, housings, and structural assemblies.

Specific Heat

~1000

J/kg/K

High specific heat enables thermal energy absorption — the barrier doesn't only block heat, it buffers thermal excursions during transient events.

Service Life

20+ Years

expected durability

No performance degradation. No bacteria, no mold, zero maintenance. Matches or exceeds the expected service life of the systems it protects.

Application Concepts

Conceptual Integration Pathways
for Advanced Systems

Levron Aerogel's material platform supports customizable integration across a range of thermal protection concepts — from thin-layer shielding to complex multilayer assemblies engineered for specific system requirements.

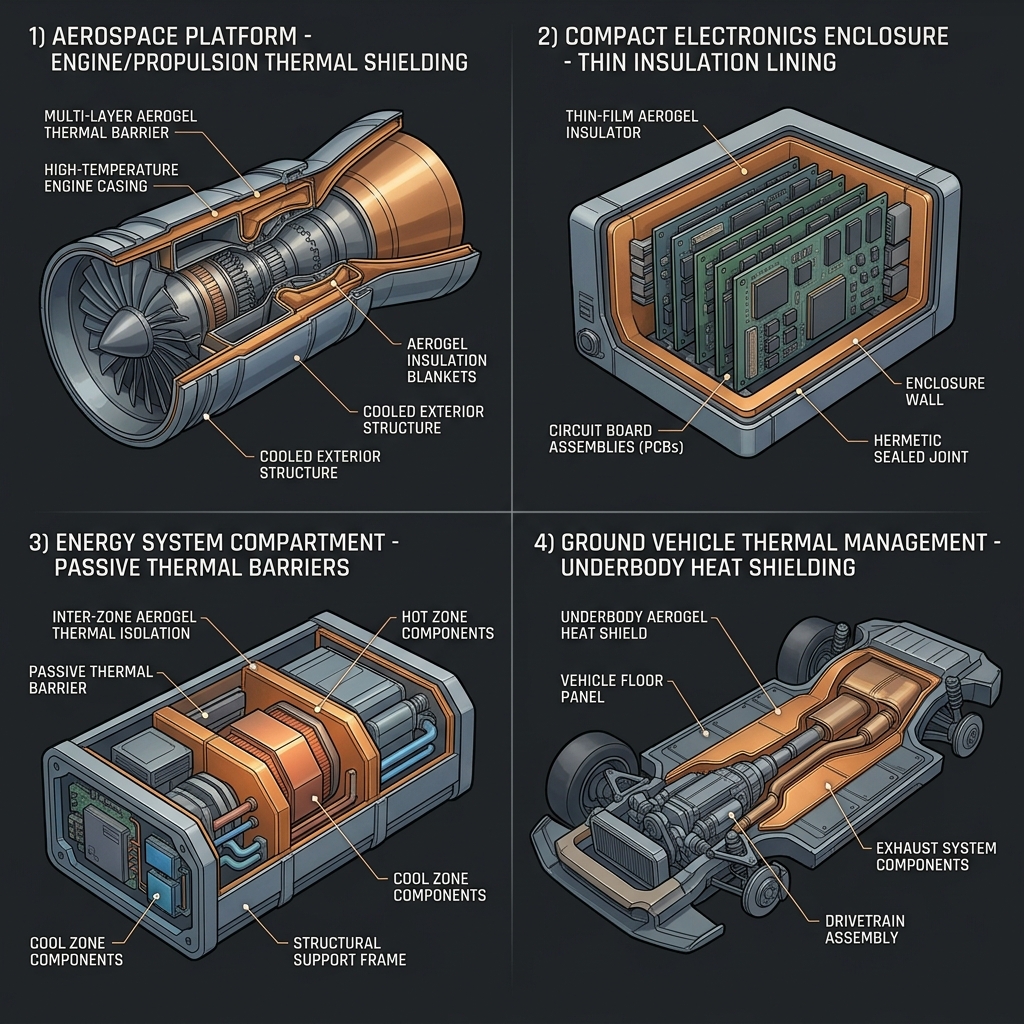

Four application zones: aerospace propulsion shielding, compact electronics enclosure insulation, energy system compartment barriers, ground vehicle underbody heat shielding

01

Propulsion & Exhaust Thermal Shielding

Lightweight aerogel barriers positioned around high-temperature propulsion and exhaust zones. Protecting adjacent electronics, fuel systems, and structural elements from conducted and radiated heat — without active cooling dependency.

High-temperature zones Passive protection Lightweight

02

Electronics Enclosure Insulation

Ultra-thin thermal lining within compact electronics enclosures. Isolating sensitive avionics, sensors, and communication systems from external thermal environments — maintaining operational temperature windows within minimal volume.

Compact integration Thin profile Die-cuttable

03

Compartment Thermal Partitioning

Passive thermal barriers between hot and cold zones within energy systems, power plants, and multi-compartment platforms. Maintaining thermal segregation without active thermal management infrastructure.

Zone separation Fire barrier Passive

04

Underbody & Structural Heat Shielding

Flexible aerogel felt applied to vehicle underbodies, structural panels, and platform surfaces exposed to ground heat radiation, exhaust thermal load, or environmental thermal stress during extended operations.

Flexible felt Environmental resilience Long-duration

05

Multilayer Protection Assemblies

Custom multilayer configurations combining aerogel felt with structural, reflective, or composite layers — engineered for specific thermal loads, fire protection requirements, and mechanical integration constraints.

Custom composite Co-developed Multilayer

06

Cryogenic & Extreme-Cold Applications

Operating range extends to -200°C — supporting cryogenic storage, cold-chain systems, and platforms requiring protection from both extreme cold and extreme heat within the same material.

-200°C to +1300°C Dual-extreme Cryogenic

Fire Resistance & Environmental Resilience

Proven Thermal Performance
Under Extreme Conditions

1000°C Direct Flame Verification

In controlled testing at 1000°C: 5cm stone wool + 4cm glass wool (9cm total) failed within 9 minutes. A single 2cm Levron Aerogel Felt layer withstood continuous exposure — the test was stopped voluntarily with the material still intact and structurally sound.

2 cm Levron outperformed 9 cm conventional

Complete Moisture Immunity

165° superhydrophobic surface chemistry ensures zero moisture absorption. Conventional fire barrier and insulation materials absorb water over time, losing 50%+ of thermal efficiency. Levron Aerogel maintains identical performance in dry, humid, wet, or salt-spray environments.

Zero-Maintenance Durability

No performance degradation. No biological growth. No maintenance cycle. The material delivers the same protection on day one and year twenty — matching or exceeding the full lifecycle of the systems it protects.

Multifunctional Property Platform

Beyond thermal protection: air permeability, filtration capability, and surface tension properties create a multifunctional material platform that can serve additional system requirements within a single material layer — reducing component count and integration complexity.

1000°C flame test comparison: 9cm conventional materials failed vs 2cm aerogel — test stopped, material intact

Macro-to-micro visualization of aerogel nano-porous structure with 50-100nm pore network

Material Science

Engineered at the
Molecular Scale

The performance of Levron Aerogel is not achieved by adding more material. It's engineered into the fundamental molecular architecture — a three-dimensional silica network that suppresses heat transfer through three simultaneous mechanisms.

Nano-Scale Pore Confinement

A silica network with 50–100 nm pore sizes — smaller than the mean free path of air molecules at standard conditions. This physically constrains gas-phase heat transfer, creating thermal shielding more effective per millimeter than any conventional material.

Triple Heat Suppression

Conduction minimized by tortuous solid pathways. Convection eliminated by molecular-scale air confinement. Radiation scattered within the pore network. All three heat transfer mechanisms addressed simultaneously — unlike conventional materials that address one or two.

>90% Air — Structural Lightness

Overwhelmingly composed of trapped air — one of the lightest solid structures known. For weight-sensitive applications, this means effective thermal protection with minimal mass penalty.

Chemical Resilience

Surface chemistry creates superhydrophobic behavior (165°) persisting to 650°C. Inert to most chemicals, resistant to UV, radiation-tolerant. Stable under conditions that degrade conventional insulation materials.

Material Comparison

Levron Aerogel vs. Conventional
Thermal Protection Materials

A structured evaluation across key performance parameters — helping engineers and program teams make informed material selection decisions for advanced thermal protection requirements.

Parameter	Stone Wool	Glass Wool	Ceramic Fiber	Levron Aerogel
Thermal Conductivity	0.035–0.045 W/m·K	0.032–0.044 W/m·K	0.06–0.14 W/m·K	0.012–0.016 W/m·K
Thickness for Equal R	6 cm	5–6 cm	4–8 cm	~2 cm
Max Temperature	700°C	500°C	1260°C	1300°C (ceramic)
Moisture Behavior	Absorbs water	Absorbs water	Low absorption	165° superhydrophobic
Weight	High density	Moderate	Low–Moderate	Ultra-light (>90% air)
Fire Classification	A1 (bulky)	A1/A2	Non-combustible	A1 (compact)
Integration Flexibility	Rigid, bulky	Fragile	Brittle	Flexible, die-cuttable
Service Life	10–15 years	10–15 years	15–20 years	20+ years

Values represent Levron Aerogel internal testing data compared to representative ranges for conventional material classes. Actual performance depends on specific configurations and operating conditions.

Why Levron Aerogel

A Serious Materials Partner
for Advanced Programs

7 years of focused R&D, 14,000 m² integrated production, multi-aerogel chemistry expertise, and proven co-development capability. Levron Aerogel is built for institutional-grade partnerships.

01

7 Years of Focused R&D

Thousands of laboratory experiments spanning silica, polymer, metal oxide, carbon, and cellulose aerogel systems. Deep chemistry knowledge that enables rapid material customization for specialized performance requirements.

02

14,000 m² Integrated Facility

Complete vertical integration — from raw material processing through Sol-Gel synthesis to final product formation. Not dependent on external supply chain. Full quality control at every production stage.

03

Multi-Chemistry Platform

Development capability across 5+ aerogel chemistry systems — including silica, inorganic oxide, polymer, carbon, and bio-based variants. Each offers distinct property advantages for different thermal protection requirements.

04

Co-Development & Discretion

Capability and willingness to support confidential co-development programs, custom material specifications, and specialized testing. Our team understands the requirements of working with institutional, government, and defense-adjacent partners.

Co-Development Pathway

From Technical Discussion
to Scaled Partnership

A structured engagement framework designed for institutional and technical partners who require material confidence before integration commitment.

1

Technical Discussion

Share your thermal protection requirements, system constraints, and operating environment. Our materials engineering team assesses fit and recommends initial material configurations.

2

Material Evaluation

Receive material samples in relevant formats. Conduct your own thermal, fire, environmental, and mechanical testing using your internal protocols and standards.

3

Custom Configuration

Collaborate on application-specific configurations — custom thicknesses, form factors, composite structures, and integration specifications matched to your system design.

4

Pilot Development

Small-batch production to validate consistency, quality parameters, and supply logistics — establishing production confidence before full-scale commitment.

5

Scaled Partnership

Volume production with dedicated quality assurance, lead-time commitments, and ongoing technical support. Long-term supply capability from our integrated 14,000 m² facility.

Technical Resources

Knowledge Center for
Advanced Materials Evaluation

Access technical documentation and request resources to support your advanced thermal protection material assessment.

📄

Levron Aerogel Felt — Technical Datasheet

Full specifications: thermal conductivity, temperature range, fire classification, mechanical properties, dimensional options, and environmental data.

Download PDF →

📄

Levron Aerogel Granules — Technical Datasheet

Particle size, thermal conductivity, surface area, and application guidance for granule-based fill and compaction configurations.

Download PDF →

🔬

Material Safety Data Sheet (MSDS)

Environmental and safety specifications. Non-toxic, eco-safe, and human-friendly material — compliant with workplace safety requirements.

Download MSDS →

📦

Request Material Sample Kit

Receive physical samples of Levron Aerogel Felt and Granules for hands-on evaluation and internal testing.

Request Samples →

📊

Thermal Protection Comparison Guide

Benchmarking of aerogel-based thermal shielding versus conventional protection materials across key performance parameters.

Request Guide →

🗓️

Schedule Technical Consultation

Book a confidential, one-on-one session with our materials engineering team to discuss specific thermal protection requirements.

Schedule Call →

Advanced Materials Engineering FAQ

How does aerogel thermal protection compare to ceramic fiber blankets?

Both operate at high temperatures, but aerogel offers 2–5× lower thermal conductivity per unit thickness. This means equivalent thermal resistance in a much thinner, lighter package. Additionally, aerogel is superhydrophobic (165°), while ceramic fibers typically absorb moisture — degrading thermal performance over time in humid or exposed environments.

Can Levron Aerogel materials be customized for specific system geometries?

Yes. Aerogel felt is flexible and can be precision die-cut to match specific component geometries, including complex shapes with cutouts. Granules can fill irregular cavities. Both formats can be combined with structural, reflective, or composite layers for multilayer assemblies developed through engineering collaboration.

What is the radiation tolerance of aerogel materials?

Silica aerogels are inherently inorganic oxide structures with strong radiation tolerance. They do not contain organic polymers that degrade under ionizing radiation. Specific radiation exposure testing can be arranged through co-development evaluation programs.

Is confidential co-development supported?

Yes. Levron Aerogel has experience supporting confidential material development programs. NDA-protected collaboration, custom testing, and restricted-distribution technical documentation can be arranged for institutional and program-level partnerships.

What cryogenic performance data is available?

Standard Levron Aerogel Felt operates to -200°C. At cryogenic temperatures, the nano-porous structure provides exceptional insulation by minimizing all three heat transfer mechanisms. Specific cryogenic performance data can be provided through the technical consultation process.

How does the material perform under vibration and mechanical stress?

Aerogel felt is flexible and compression-tolerant (~40 kPa). It maintains structural and thermal integrity under typical vibration environments encountered in vehicle, aerospace, and industrial applications. Application-specific vibration testing can be arranged through the co-development pathway.
